14KP20DE-DOF Drive Over Fender
14KP20DE-DOF Drive Over Fender

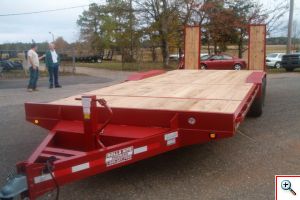

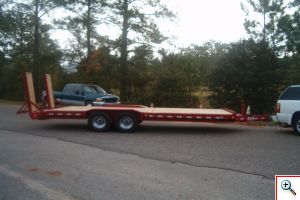

7 Ton Drive Over Fender Tag Along Flatbed Trailer
Model: 14KP20DE-DOF
Weight: 3,700 #
Description: 17' Flat 3' Dove Tail, 3" Drive Over Fenders
�
�
�
Specifications
| G.V.W.R. | 14,000 # | Axles | 7K�Dexter | ||
| G.A.W.R. (each axle) | 7,000 # | Suspension | Slipper Spring | ||
| Coupler | Adjustable Pintle | Tires | 235 80R 16 10 Ply | ||
| Safety Chains | High Tensile Safety Chains | Wheels | 16"X6 8 Lug | ||
| Jack | 12K Jack | Floor | Standard Oak/Treated Pine | ||
| Neck | N/A | Lights | LED�Lights / DOT�Specs. | ||
| Frame | 8" Channel | Finish (prep) | 2 Coats Primer | ||
| Crossmembers | 3" Channel 16" O.C. | Finish | Paint including underneath | ||
| Side Rails | 6" Channel | Paint | 2 Coats |
�
Standard Features
- 10000# True Hauling Capacity with Adequate Tongue Weight and Evenly Distributed
- Oak / Treated Pine Decking
- Custom Drive Over Fenders
- Sealed Wiring Harness
- LED�Rubber Mounted Sealed Beam Llights
- 2 Year Warranty
- Dexter Axles
- 102" Wide
- 29" Deck Height
- Slipper Spring Suspension
- Electric Brakes on All Axles
- Radial Tires
- Meets and Exceeds D.O.T. Regulations
- Primed and Painted Underneath
�
Available Options: on most models
- Gooseneck Option
- Spring Assist Split Ramp Gate
- Dual Jacks
- Additional Deck Length
- Wood Filled Ramps
- Spare Tire and Wheel
- Steel Deck
- Any other custom needs
�
