Specifications
| G.V.W.R. | 25,000 # | Axles | Dexter 10,000 |
| G.A.W.R. (each axle) | 10,000 # | Suspension | HD Slipper Spring |
| Coupler | 30K Bulldog Adjustable | Tires | 235 80R 16 10 Ply |
| Safety Chains | High Tensile Safety Chains | Wheels | 16" 8 LUG |
| Jack | Dual 12K Jacks | Floor | Standard Oak/Treated Pine |
| Neck | 12" I Beam 16# per foot | Lights | LED Lights / DOT Specs. |
| Frame | 10" Channel 19# per foot | Finish (prep) | 2 Coats Primer |
| Crossmembers | 3" Channel | Finish | Paint including underneath |
| Side Rails | 6" Channel | Paint | 2 Coats |
Standard Features
- Hydraulic Cushion Cylinders
- Oak Decking With Recessed Deck Straps
- Sealed Wiring Harness
- LED Rubber Mounted Sealed Beam Lights
- 2 Year Warranty
- Dexter Axles
- 102" Wide
- Slipper Spring Suspension
- Electric Brakes on All Axles
- Radial Tires
- Meets and Exceeds D.O.T. Regulations
- Primed and Painted Underneath
- Stationary Deck
- Rub Rails Stake Pockets With Spools
Available Options: On Most Models
- Air Brakes
- Electric Over Hydraulic Brakes Drum or Disc
- Additional Deck Length
- Cleated Rear Deck (Tilt)
- Deckover Goose Neck
- Cargo Winch and Straps
- Spare Tires and Wheel
- Power Tilt
- Steel Deck
- Hydraulic Ramps
- Any other custom needs
Additional Images

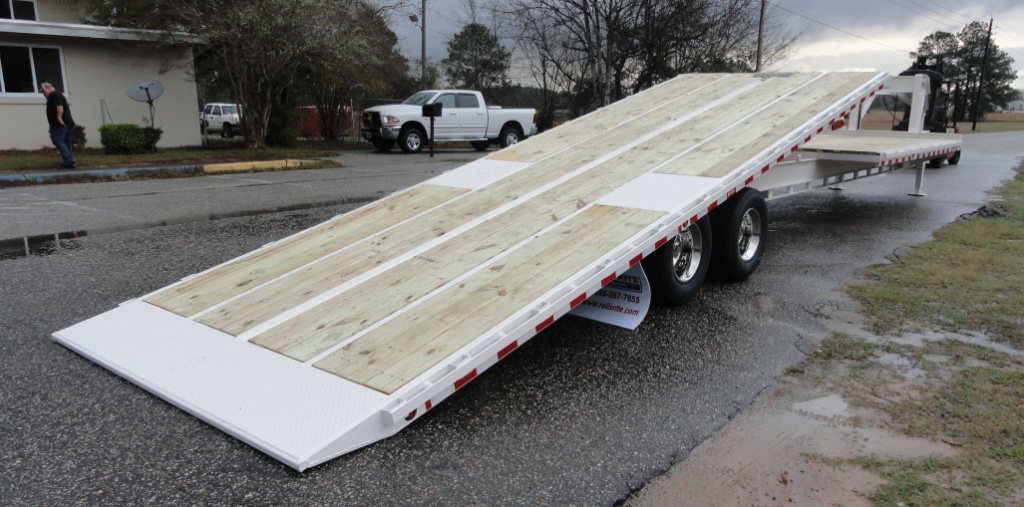

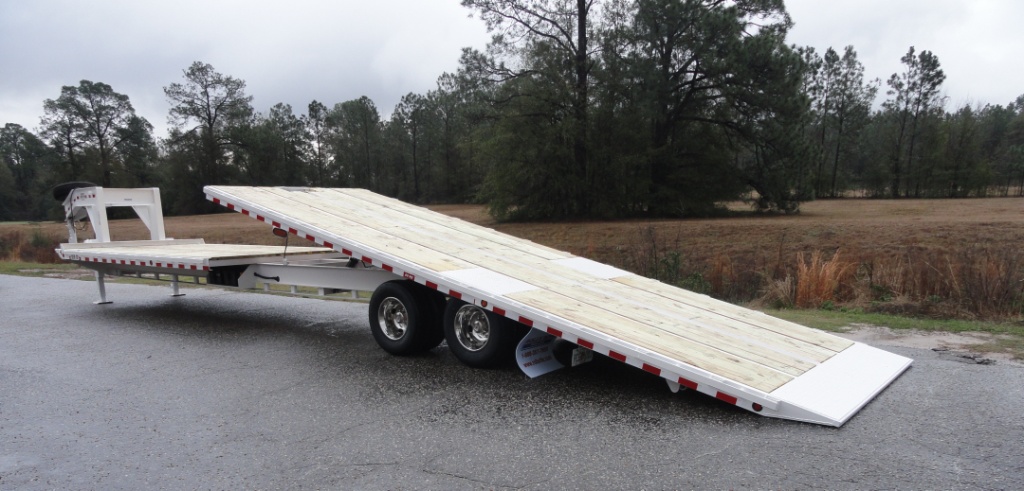

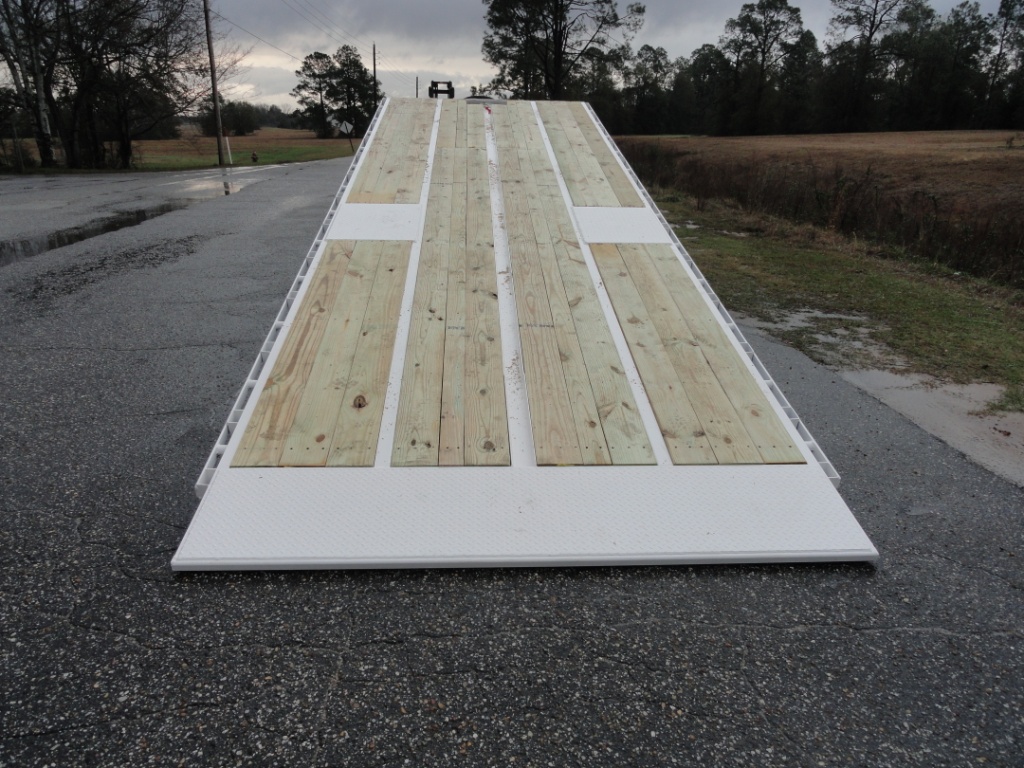

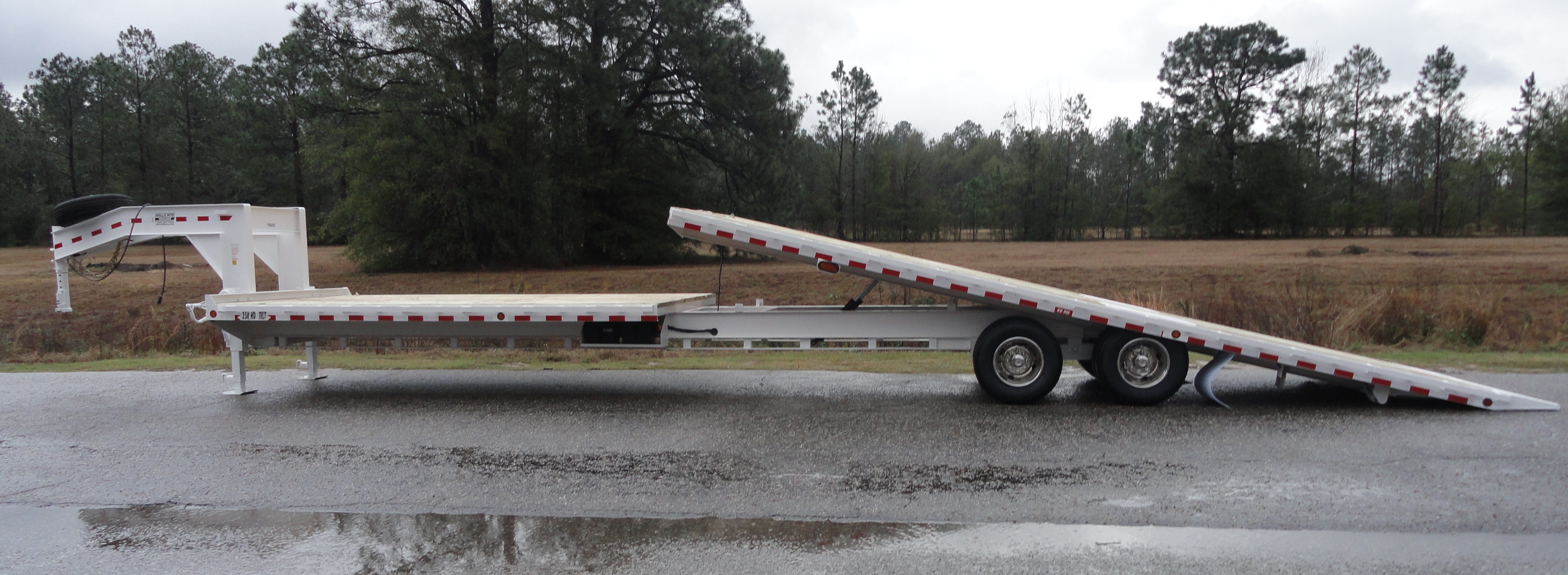

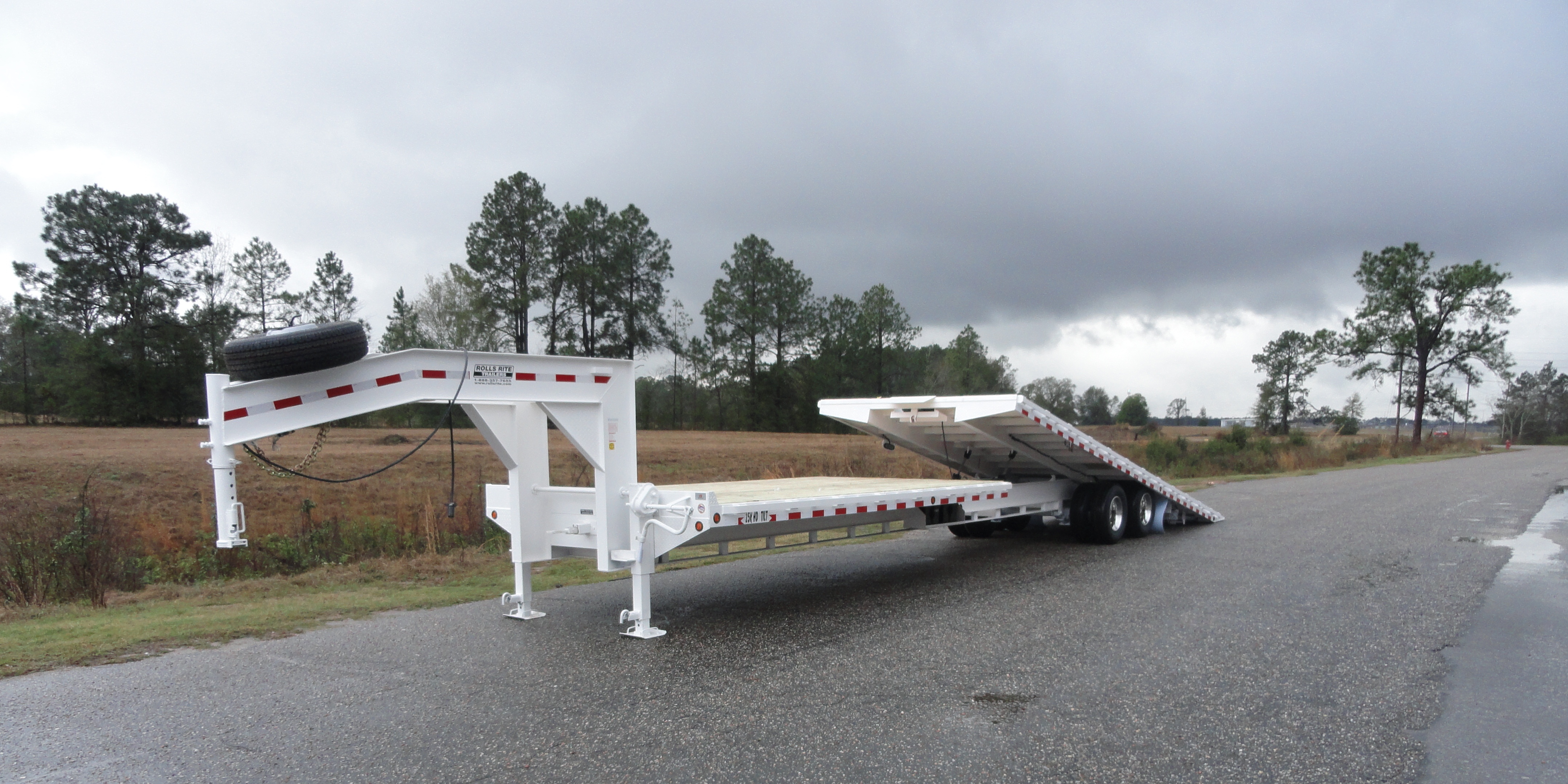

25 foot tilt and 15 foot stationary model with wheel simulators and power up and down option with custom paint
